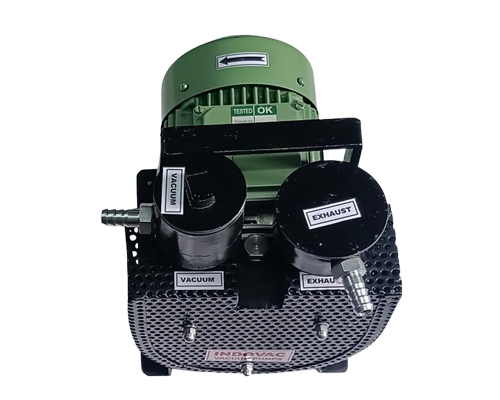

MODEL IVC – 300 (MONOBLOC)

MODEL IVC – 300 (MONOBLOC)

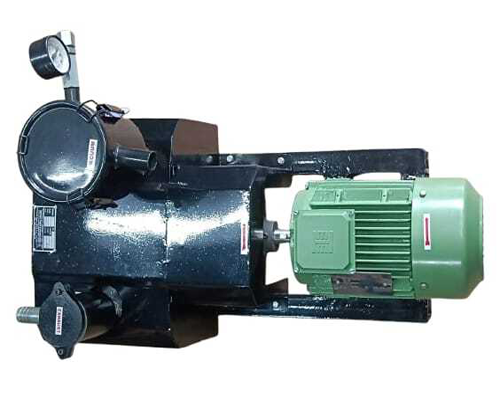

MODEL IVC-300

MODEL IVC-300

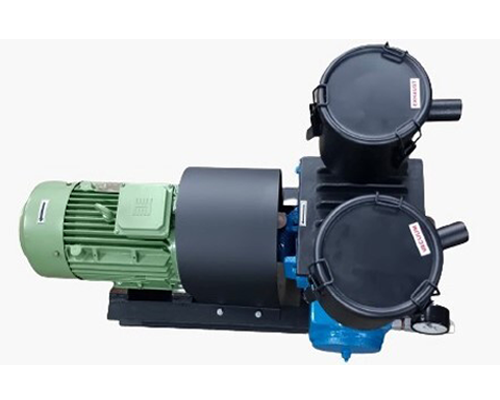

MODEL IVC-500

MODEL IVC-500

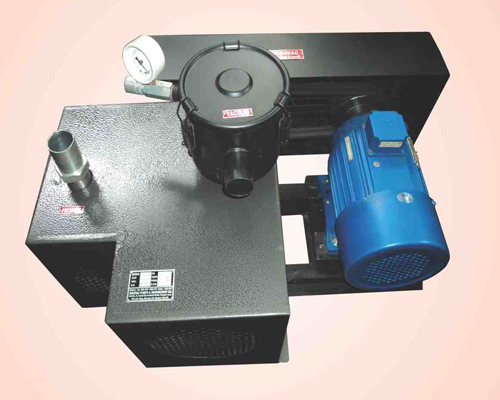

MODEL IVC-1000, IVC-1500, IVC-2000

MODEL IVC-1000, IVC-1500, IVC-2000

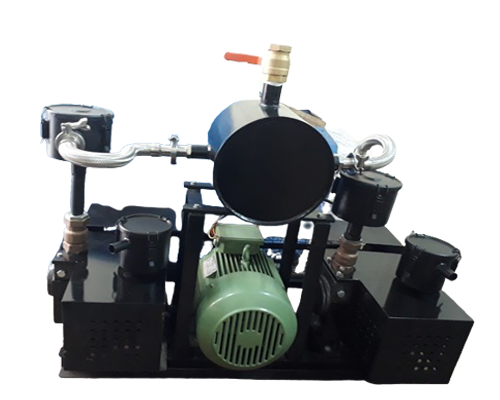

DRY COMBINED PUMP MODEL IVC -2500

DRY COMBINED PUMP MODEL IVC -2500

MODEL IVC – 150 (MONOBLOC)
MODEL IVC – 300 (MONOBLOC)
MODEL IVC – 300
MODEL IVC – 500
MODEL IVC – 1000, IVC – 1500, IVC – 2000
DRY COMBINED PUMP MODEL IVC -2500

ROTARY VANE DRY TYPE OF VACUUM PUMP

INDOVAC’s Dry Type Vacuum Pumps are designed with modern integrated vacuum technology to provide efficient, low-maintenance performance. This enhanced version complements our existing range of pumps, including Rotary Vane, Oil Sealed, Diaphragm, Liquid Ring Vacuum Pumps, Turbine/Side Channel Blowers, Roots Blowers/Boosters, Vacuum Cleaners, Vacuum Systems, Evisceration Systems, and related products. With rapid advancements in vacuum technology, these pumps are specifically developed to meet the demanding needs of OEM customers, offering versatility, reliability, and consistent performance across various industrial applications.

Features

  • Low Maintenance, High Performance – Advanced dry-type design ensures reliable operation with minimal upkeep.

  • Compact & Durable – Space-saving construction built to last in industrial environments.

  • Energy Efficient – Optimized for reduced power consumption without compromising performance.

  • Versatile Applications – Perfect for laboratories, manufacturing, OEM setups, and other vacuum processes.

  • Available in Capacity
  • Applications
Specification Details
Free Air Displacement 50 - 2000 LPM [3-120 m³/hr]
Ultimate Vacuum 24" Hg [600 mm Hg]
Pressure 6 - 10 PSI
Power Required 0.25 - 7.5 HP
Type Direct Driven / Belt Driven

Applications

  • Pharmaceuticals

  • Printing

  • Pollution Control

  • Laboratory

  • Sealing

  • Filling

  • Other Vacuum Applications
